LD28 IP Nissan part numbers

Discuss (and cuss) the Nissan LD-series OHC Six diesel engine, popularly available in the US in 1981-83 Datsun/Nissan Maxima Sedans & Wagons.

Moderators: plenzen, glenlloyd, goglio704, Nissan_Ranger

Post Reply
User avatar
asavage
Site Admin
Posts: 5452
Joined: 19 years ago
Location: Oak Harbor, Wash.
Has thanked: 2 times
Been thanked: 3 times
Contact:
Contact asavage

LD28 IP Nissan part numbers

#1

Post by asavage »

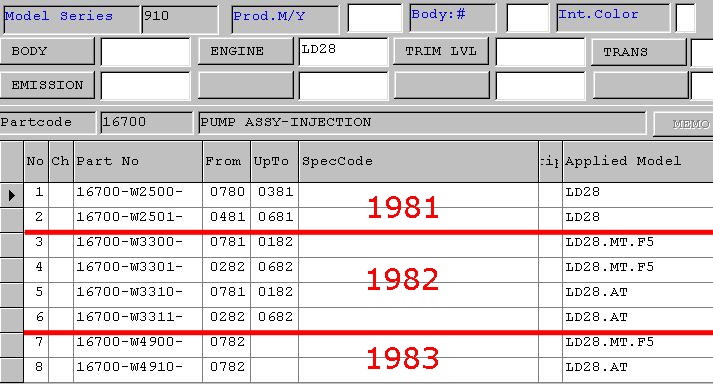

To answer a Q from member odie, I kicked Nissan FAST just right and got it to cough up this list:

(click on image for larger)
Last edited by asavage 17 years ago, edited 1 time in total.
Regards,
Al S.

1982 Maxima diesel wagon, 2nd & 4th owner, 165k miles, rusty & burgundy/grey. Purchased 1996, SOLD 16Feb10
1983 Maxima diesel wagon, 199k miles, rusty, light yellow/light brown. SOLD 14Jul07
1981 720 SD22 (scrapped 04Sep07)
1983 Sentra CD17, 255k, bought 06Jul08, gave it away 22Jun10.
Top
goglio704
Posts: 726
Joined: 19 years ago
Location: East Tennessee

#2

Post by goglio704 »

Part Number______Date Range_______Application____Model Year

16700-W2500- ____0780-0381_______ LD 28________81

16700-W2501- ____0481-0681_______ LD 28________81

16700-W3300- ____0781-0182_______ LD 28 MT_____82

16700-W3301- ____0282-0682_______ LD 28 MT_____82

16700-W3310- ____0781-0182_______ LD 28 AT_____82

16700-W3311- ____0282-0682_______ LD 28 AT_____82

16700-W4900- ____0782-????_______ LD 28 MT_____83

16700-W4910- ____0782-????_______ LD 28 AT_____83

Are these the original, as built, numbers or the newest numbers in the FAST system?
Last edited by goglio704 17 years ago, edited 1 time in total.
Matt B.

83 Maxima Sedan, LD28, 5 speed, white, 130k miles. My original Maxima.
83 Maxima Sedan converted from gasser, LD28, 5 speed, 2 tone blue, 230k miles
82 Maxima Sedan, LD28, 3 speed auto, 2 tone Gray/Silver, 140k miles
81 810 Sedan, LD28, 3 speed auto, rust, rust, and more rust!

2005 Jeep Liberty CRD
Top
User avatar
asavage
Site Admin
Posts: 5452
Joined: 19 years ago
Location: Oak Harbor, Wash.
Has thanked: 2 times
Been thanked: 3 times
Contact:
Contact asavage

#3

Post by asavage »

goglio704 wrote:Are these the original, as built, numbers or the newest numbers in the FAST system?
I don't know. Usually, original and superceding part Nos. are listed in FAST. I know they are in the paper parts catalogue. If I remember, I'll cross-check when I get home.
Top
